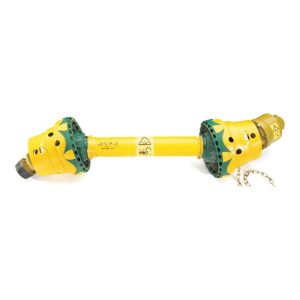

Walterscheid Wide-Angle PTO Drive Shaft WWG 80°
Walterscheid WWG 80° wide-angle PTO drive shafts, sizes 2280–2580, for tight turning: 20–102 kW (1,000 h), SD guard keeps the joint covered at any bend angle.
The WWG wide-angle joint lets the PTO shaft run at bend angles up to 80° during tight turns or implement lifting, ideal for trailed and mounted implements needing large steering angles. The wide-angle SD guard keeps the joint fully protected at any bend angle.
Specifications
| Brand | Walterscheid |
|---|---|
| Joint type | WWG 80° wide-angle double joint |
| Sizes | WWG 2280, 2380, 2480, 2580 |
| Dimensions B × Z (mm) | 76×22, 91×24, 94×27, 106×32 |
| Swing diameter | 142 – 180 mm |
| Guard | Wide-angle SD, also meets ISO 5674 radial load test and French decree 81293 (per manufacturer) |
Sizes and power ratings (shares cross kits with matching G sizes)
| Size (G / WWG) | Cross kit A × Y (mm) | Swing dia. G (mm) | Swing dia. WWG (mm) | Ms / Mp (Nm) | Power (1) 540 / 1000 rpm (kW) | Power (2) 540 / 1000 rpm (kW) |
|---|---|---|---|---|---|---|
| 2100 | 55 × 22 | 69 | — | 335 / 1,100 | 12 / 18 | 19 / 29 |
| 2200 / WWG 2280 | 61 × 24 | 76 | 142 | 565 / 1,750 | 20 / 31 | 32 / 49 |
| 2300 / WWG 2380 | 75 × 27 | 92 | 155 | 840 / 2,350 | 28 / 44 | 45 / 69 |
| 2400 / WWG 2480 | 76 × 32 | 95 | 165 | 1,240 / 3,800 | 39 / 61 | 62 / 96 |
| 2500 / WWG 2580 | 89 × 36 | 108 | 180 | 2,150 / 6,000 | 66 / 102 | 105 / 162 |
| 2600 | 104 × 42 | 125 | — | 2,895 / 7,800 | 79 / 122 | 125 / 193 |
| 2700 | 118 × 50 | 145 | — | 4,530 / 10,600 | 119 / 182 | 188 / 289 |
(1) Standard joint G at 5°, wide-angle joint WWG at 10°, 1,000 h life. (2) G at 10°, WWG at 18°, 100 h life. Ms: pulsating torque; Mp: static load limit. Data per manufacturer catalogue.
Features
- Bend angles up to 80° when turning
- Joint always covered, no contact with rotating parts
- Shares telescopic sections and clutches with the G range
Applications
- Trailed spreaders and balers
- Implements needing large turning angles
- Frequently lifted agricultural equipment
Request a quote
Prices depend on model, size, connection type and quantity. Send FEYANA the part number or nameplate photo, drawing or mating dimensions, power, speed and operating conditions for correct selection and a fast quotation. We supply from Vietnam across Southeast Asia.
