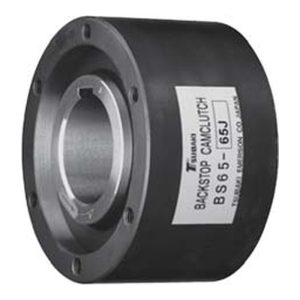

Ly hợp một chiều chống quay ngược Tsubaki Cam Clutch BS, BS-HS, BR (backstop)

Tsubaki Cam Clutch Backstops: BS, BS-HS, BR and MG Series

Tsubaki Cam Clutch backstops for inclined conveyors and bucket elevators: BS, full-complement BS-HS, lift-off BR and MG series; instant hold without backlash, self-lubricating.

WhatsApp quote Email quote

Categories: Mechanical Power Transmission, Clutches & Brakes

Description
Reviews (0)

The BS series Cam Clutch was developed for inclined belt conveyors and bucket elevators in mining and other industries to prevent runback on power or system failure. Precision-formed non-roll-over cams stay in contact with the races for instantaneous holding without backlash.

Series	Features and applications
MG	Intermediate shaft or head pulley on small discharge conveyors and transfer chutes; grease or oil; gearbox backstopping

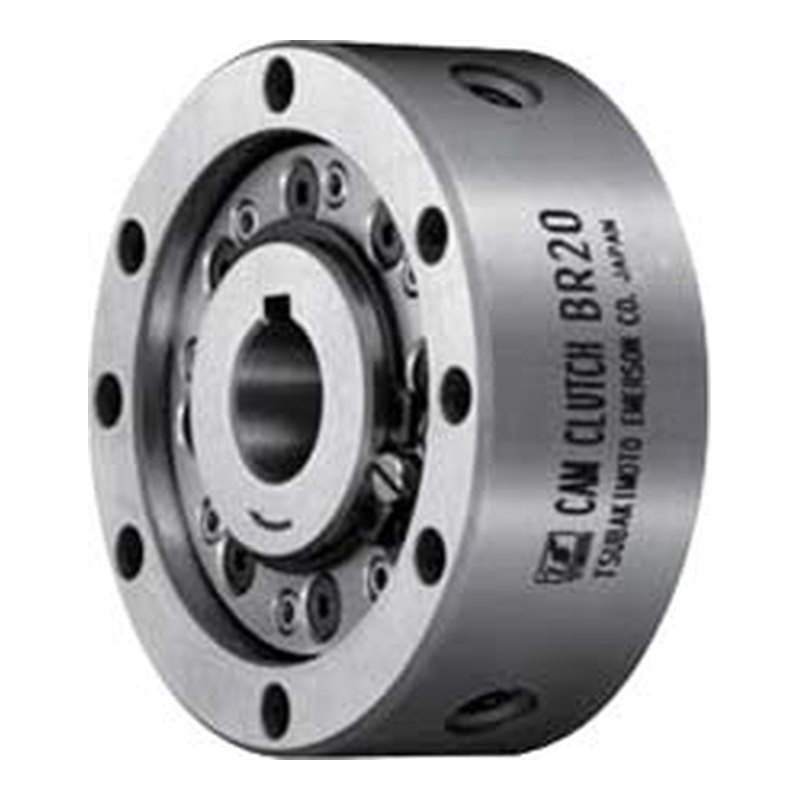

BR (Lift Off)	Cams lift off by centrifugal force with no contact when overrunning; high-speed inner race; dewatering and filtration pumps
BS	Low speed, high torque; instant hold, low noise, easy maintenance, long life, compact; head shaft pulley of incline/decline conveyors
BS-HS	Full-complement cam cage with bearing-supported races; higher loads and speeds than BS, often one size smaller; super conveyors
Double cam cage BS-HS / MA	Standard on BS425HS, BS450HS; MA flanges replace previous units using existing torque arms

BS220TA – BS450TA torque arms and safety covers available.

Features

Higher torque size-for-size with full-complement cams (HS)
Non-roll-over cams resist shock loads
Self-lubricating orbital cam cage
Reduced sliding speed for longer overrunning life
Per manufacturer tests, runs cooler than roller-ramp clutches

Applications

Inclined conveyors and elevators in mining and coal
Cement and port conveyors
Gearboxes and dewatering pumps
Coal preparation plants (CHPP)

Request a quote

Prices depend on part number, size, material and quantity. Send FEYANA your current chain or sprocket number, drawing or nameplate photo and operating conditions (load, speed, environment) for selection and a fast quotation. We supply from Vietnam across Southeast Asia.
