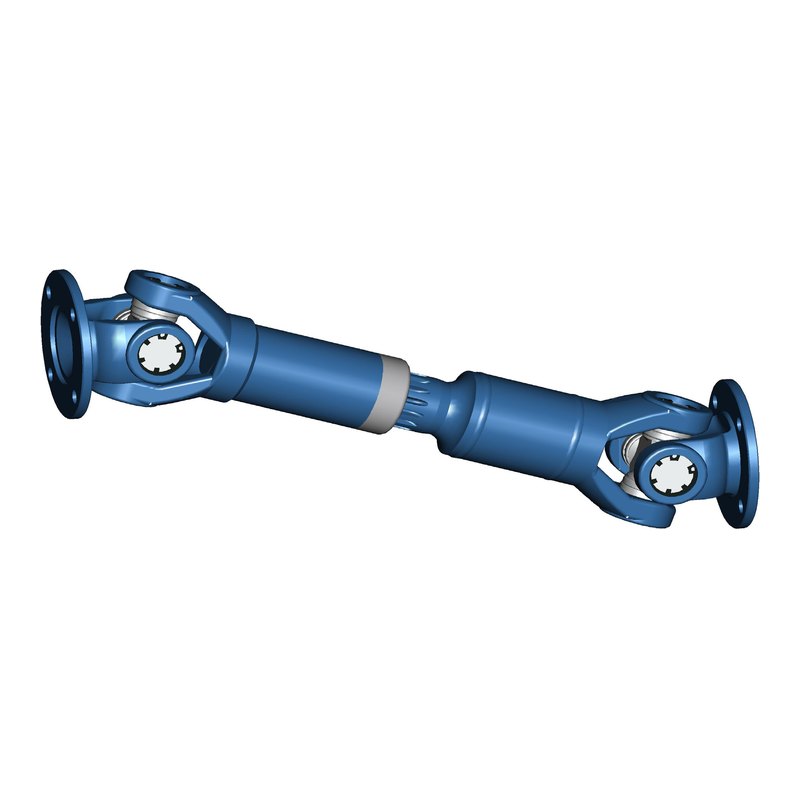

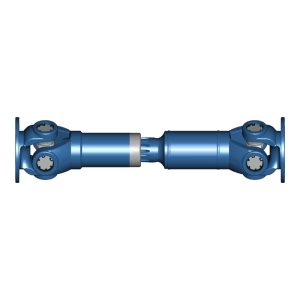

GKN Uni-Cardan Cardan Shaft Series 473 (195 – 520 Nm)
GKN Uni-Cardan Series 473 cardan shafts for general machinery: TCS 195–520 Nm, flange diameter 58–90 mm, low maintenance, partly Rilsan coated.
Series 473 is the light-duty GKN Uni-Cardan® cardan (universal joint) shaft range for general machinery and production lines, available with DIN flange or hub connections and many designs: with or without length compensation, short and double-joint versions.
Specifications
| Brand | GKN (Uni-Cardan®) |
|---|---|
| Functional limit torque TCS | 195 – 520 Nm |
| Flange diameter | 58 – 90 mm |
| Connections | DIN flange, hub |
| Regreasing interval | 3 months (joints and length compensation) |
| Size | TCS (Nm) | TK (Nm) |
|---|---|---|
| 473.10 | 195 | 150 |
| 473.20 | 325 | 250 |
| 473.30 | 520 | 400 |
| 473.33 | — | 500 |
TCS: functional limit torque; TK: catalogue torque.
GKN cardan shaft range: max static torque up to 70,000 Nm, flange diameters 58 – 285 mm, shaft lengths up to 6,000 mm; ATEX conformity certificates category 2 and 3 available (per manufacturer).
Features
- Low maintenance
- Partly Rilsan-coated length compensation
- Designs 0.01, 0.02, 0.03, 9.01 – 9.05, 7.02
Applications
- General machinery
- Pumps, fans and mixers
- Production lines
Request a quote
Prices depend on model, size, connection type and quantity. Send FEYANA the part number or nameplate photo, drawing or mating dimensions, power, speed and operating conditions for correct selection and a fast quotation. We supply from Vietnam across Southeast Asia.
- WhatsApp / Phone: +84 988 641 591
- Email: sales.00@feyana.com
