Cầu lái Comer Industries S-Series (S-068 – S-358) cho máy công trình

Comer Industries Steering Axles S-Series (S-068 – S-358)

Name: Comer Industries Steering Axles S-068 – S-358 | FEYANA
SKU: S-068/S-358

Comer Industries S-068 to S-358 steering axles: 2,700–15,000 daN dynamic load, 850–6,500 daNm torque, for telehandlers, wheeled excavators and mixers.

WhatsApp quote Email quote

SKU: S-068/S-358 Categories: Mechanical Power Transmission, Off-Highway Axles & Transmissions Tag: Automotive Industry

Description
Reviews (0)

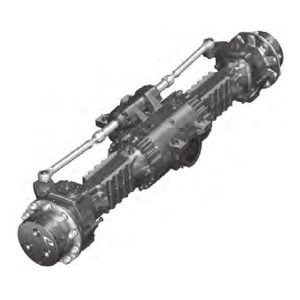

Comer Industries S-Series steering axles are driven axles with integrated steering cylinders, used as front or rear axles on telehandlers, concrete mixers, wheeled excavators and self-propelled feed mixers, with wheel-end reduction.

Specifications

Brand	Comer Industries
Type	Driven steering axle
Models	S-068, S-080, S-128, S-228, S-238, S-258, S-328, S-358
Max. dynamic load	2,700 – 15,000 daN
Max. torque	850 – 6,500 daNm

Model	Max. dynamic load (daN)	Max. torque (daNm)	Wheel reduction	Total ratio
S-068	2,700	850	4.31	9.63 – 24.00
S-080	2,700	2,100	4.80	10.73 – 26.74
S-128	5,800	2,400	6.00	13.41 – 24.66
S-228	8,000	3,400	6.00	13.41 – 24.66
S-238	9,300	3,400	6.00	13.41 – 24.66
S-258	9,300	4,200	6.00	14.28 – 26.30
S-328	12,000	5,300	6.40	13.72 – 28.00
S-358	15,000	6,500	6.40	15.76 – 28.00

Dynamic load values refer to pivoting-mounted axles. Figures are indicative per catalogue; individual applications are subject to manufacturer approval.

Features

Integrated steering cylinder
Wheel-end reduction
Pairs with same-size F-Series rigid axles for 4WD

Applications

Self-loading concrete mixers
Site dumpers
Front end loaders
Self-propelled feed mixers
Single drum compactors
Telehandlers
Wheeled excavators

Selection and quotation

These products are configured per application. Send FEYANA the machine type, loads, torque/power, speeds, required ratio, mounting arrangement and drive motor (hydraulic/electric), or the existing part number to be replaced, for configuration advice and a quotation. We supply from Vietnam across Southeast Asia.
