Tsubaki Zip Chain Lifter Electric Table Lift

Tsubaki Zip Chain Lifter transmits lifting thrust directly through Zip Chain: 3–10x faster than hydraulic lifters, up to 50% energy savings; standard 1,000 kg model with 1,000 mm stroke.

WhatsApp quote Email quote

Categories: Tools & Workshop Equipment, Conveyors & Material Handling, Sorting, Lifting & Automated Storage Tags: Consumer Goods Industry, Food & Beverage Industry, Pharmaceutical Industry

Description
Reviews (0)

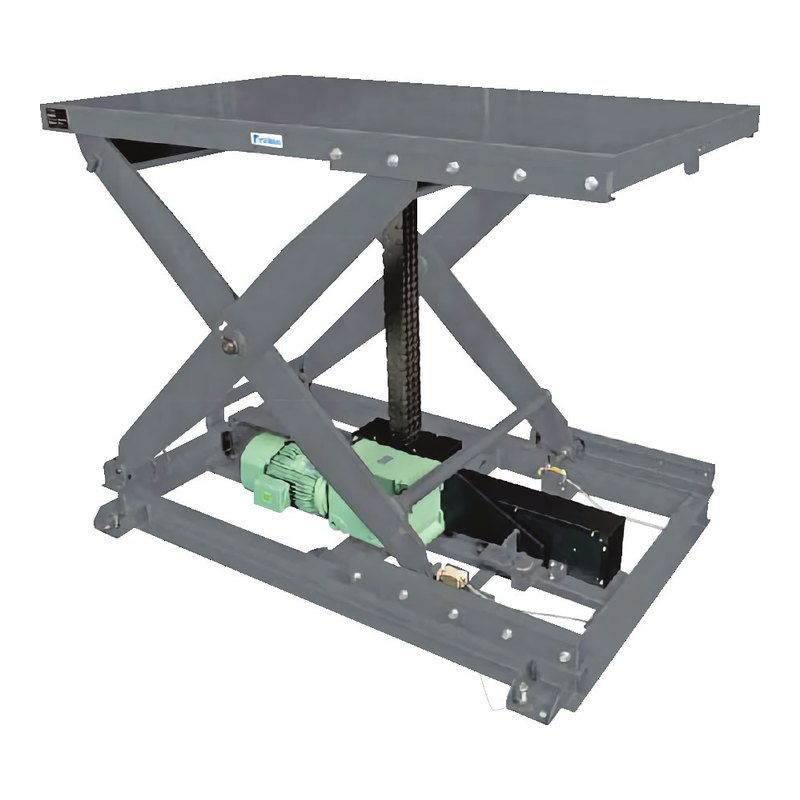

The Zip Chain Lifter is a scissor table lifter that transmits lifting thrust directly through Zip Chain (chains that interlock into a rigid column). According to the manufacturer it runs 3 to 10 times faster than hydraulic lifters, supports high-frequency operation and saves up to 50% energy.

Standard 1,000 kg model

Lifting weight	1,000 kg
Stroke	1,000 mm (single-stage pantograph)
Speed	5.5 and 11 m/min
Cycle	13.5 s
Stopping accuracy	±1 mm
Expected life	Over 1 million cycles

Application examples from the manufacturer

Application	Load	Speed	Stroke / notes
Eliminating conveyor height difference	100 kg	50 m/min	900 mm, 7 s/cycle, servomotor
Mounted on an AGV	300 kg	25 m/min	1,250 mm, DC power
With Lift Master	200 kg	11 m/min	2,000 mm
High-speed sorting	400 kg	20 m/min	800 mm
Stacking	350 kg	30 m/min	1,000 mm
Unstacking steel plates	1,000 kg	5 m/min	1,000 mm

Features

Efficient drive: Zip Chain pushes the top plate directly
Durable: thrust carried by Zip Chain, less load on scissor hinges, rollers and bearings
No hydraulic tank, clean
Accurate stopping for high-frequency use

Applications

Automotive and machinery lines
Stacking and unstacking, steel plates
On AGVs and sorting carts
Lifting between conveyor levels

Solution enquiry

Systems are engineered to each site layout and throughput. Send FEYANA your item types, dimensions, weights, hourly volume and warehouse layout for configuration advice and a quotation. We supply from Vietnam across Southeast Asia.
