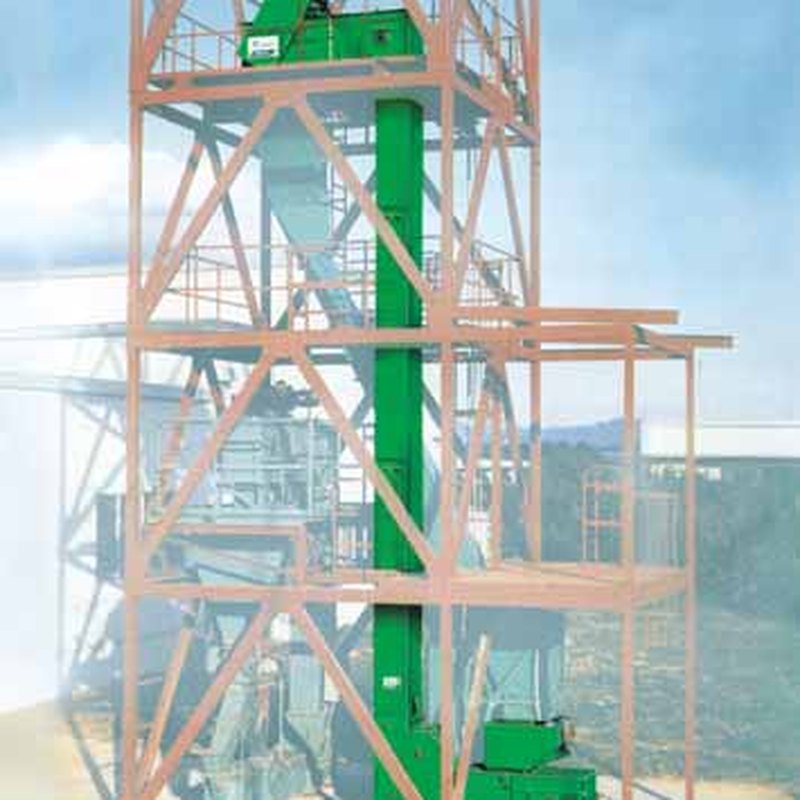

Tsubaki NFV, BFV and BLF Flightveyor Conveyors
Tsubaki Flightveyors convey horizontally and vertically in one unit: NFV 1.15–170 m³/h for adhesive materials, BFV for abrasive ash and silica sand, belt-type BLF 50–370 m³/h.
Flightveyors have flights mounted on chains (or a belt) running in a sealed casing, conveying along horizontal, vertical and inclined layouts in a single unit, including difficult adhesive and abrasive materials.
| Series | Construction | Models | Capacity | Materials |
|---|---|---|---|---|
| NFV Flightveyor | Flights on two chain strands | NFV100 – NFV580, 6 sizes | 1.15 m³/h (NFV100, 5 m/min) – 170 m³/h (NFV580, 20 m/min) | Chemicals, lime, incinerated ash, adhesive materials |
| BFV Flightveyor | Combines flight conveyor and bucket elevator functions | BFV200 – BFV600, 4 sizes | 1.6 m³/h (BFV200, 5 m/min) – 8.6 m³/h (BFV600, 5 m/min) | Coke, sintered ore dust, silica sand, incinerated ash |
| BLF Flightveyor | Belt type, high speed and space efficient | BLF400 – BLF750 (400–750 mm belt), 5 sizes | 50 m³/h (BLF400, 60 m/min) – 370 m³/h (BLF750, 100 m/min) | Coal, charcoal dust, grain |
Features
- Flexible horizontal, vertical and inclined layouts
- Compact, economical, multiple inlets
- Dust-tight and waterproof
- BFV: long casing life, low power, no leakage
- BLF: high speed, clean conveyance
Applications
- Chemical and lime plants
- Incinerators and power plants (ash)
- Metallurgy: coke and sintered ore
- Coal and grain
Request a quote
Equipment is engineered per application. Send FEYANA the material, lump size, bulk density (t/m³), temperature, moisture, characteristics (abrasive, adhesive, corrosive), conveyor length and layout (horizontal, vertical, inclined), capacity (t/h), installation site and power source for model selection and a quotation. We supply from Vietnam across Southeast Asia.
- WhatsApp / Phone: +84 988 641 591
- Email: sales.00@feyana.com
