NARA Torsionally Stiff Couplings – PANFLEX, GEAR, DRUM
- PANFLEX: lubrication-free disc packs, zero backlash, torsionally stiff
- GEAR: grease-lubricated, compact and light for the power transmitted
- DRUM: wear indicator for overhaul timing; surface treatment and sealing for port environments (humidity, salt, dust)
- NARA (Korea) products – supplied and quoted by FEYANA
NARA torsionally stiff couplings transmit high torque precisely even under severe operating conditions and extreme temperatures. Three families: PANFLEX disc couplings, GEAR couplings and DRUM couplings for cranes.
FEYANA supplies products of NARA Autosys (Korea), a power-transmission manufacturer founded in 1977 in Busan and certified to ISO 9001, ISO 14001 and ISO 45001.
Product range
| Series / model | Description |
|---|---|

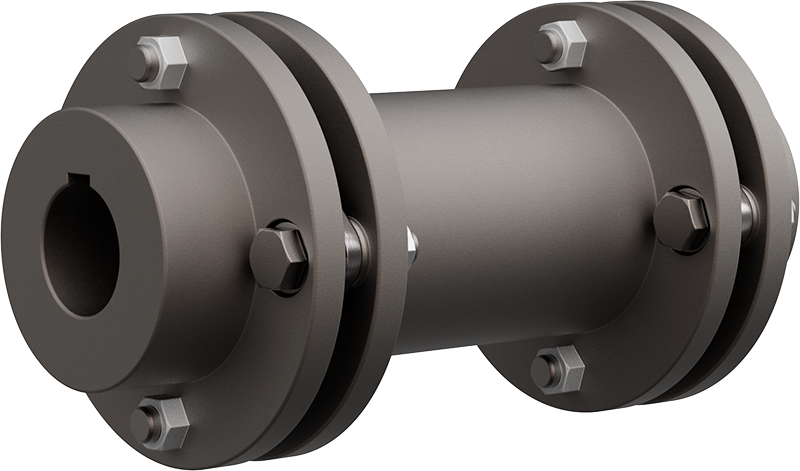

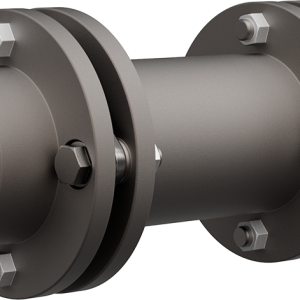

| PANFLEX NPA / NPB / NPS / NPE | Disc couplings: NPA compact single element; NPB double element, API 671, assembled without moving connected equipment; NPS customisable spacer; NPE with adapters, extended bore |
| PANFLEX NPC | Corrosion-resistant composite spacer, lightweight, for long shaft distances – cooling towers |
| PANFLEX NPH | High-speed precision balanced, API 671, optional ATEX (2014/34/EU) |

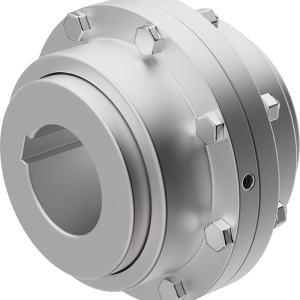

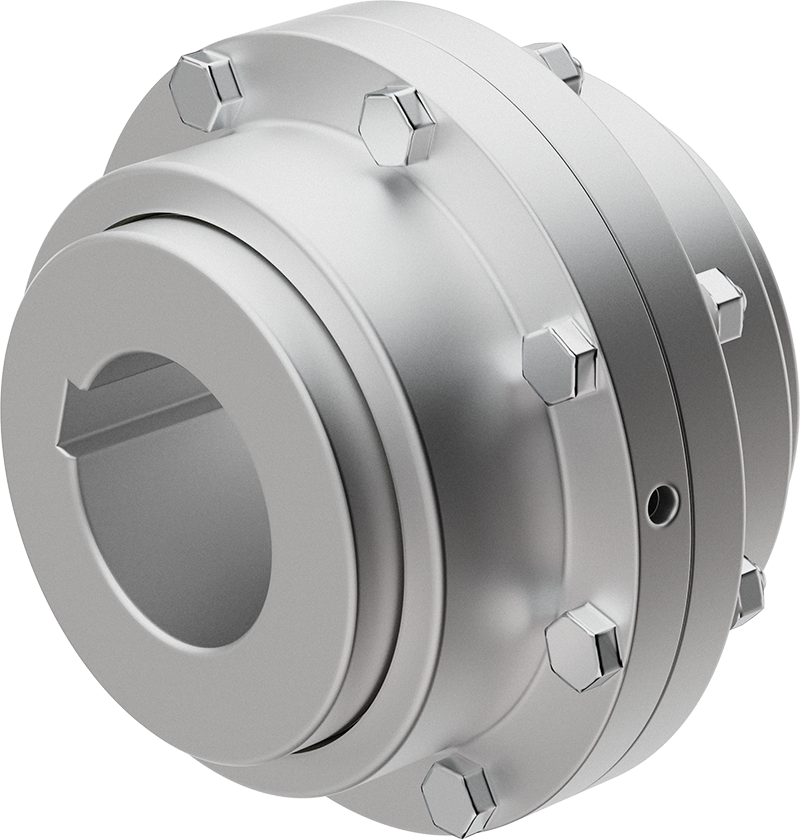

| GEAR – G series (NGG, NGA, NGE, NGGB/NGGD) | Gear couplings: two hubs/two sleeves; spacer type; one hub/one sleeve; with brake drum / disc |
| GEAR – S series (SSM, SEM, SVM, SAM) | Gear couplings: two hubs; gear hub + rigid hub; vertical; spacer type |
| GEAR – RWS / RW | Gear couplings for railway vehicles, high angular and offset capacity, low noise and vibration at high speed |

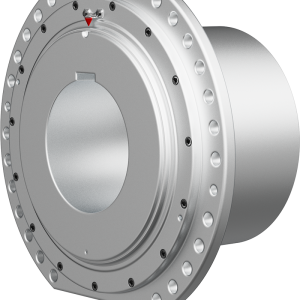

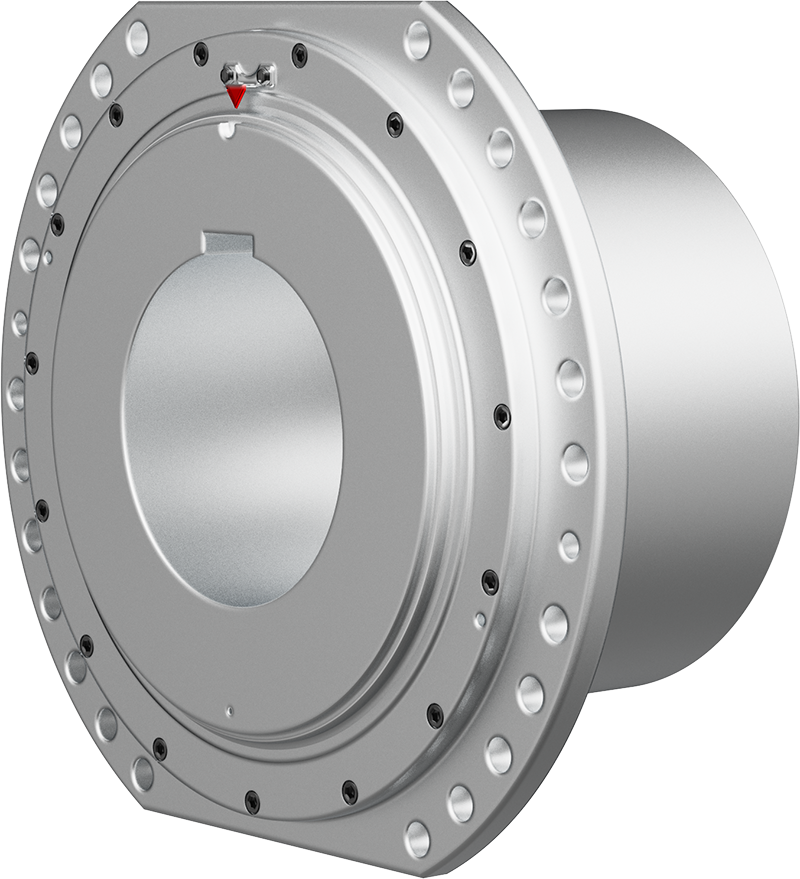

| DRUM – DR series | Drum couplings for container crane rope drums with heavy vertical loads; crowned rollers compensate parallel, angular and axial misalignment |
Key features
- PANFLEX: lubrication-free disc packs, zero backlash, torsionally stiff
- GEAR: grease-lubricated, compact and light for the power transmitted
- DRUM: wear indicator for overhaul timing; surface treatment and sealing for port environments (humidity, salt, dust)
- NPB and NPH can be built to API 671
Main specifications
| Item | Specification |
|---|---|
| PANFLEX rated torque | up to 238,000 Nm |
| GEAR rated torque | 110 – 6,700,000 Nm |
| DRUM maximum torque | 6,500 – 2,338,000 Nm |
Applications
- Pumps, fans, compressors, generators, marine equipment, dryers
- Cranes, conveyors, agitators, crushers
- Steel mill equipment, railway vehicles
- Container cranes, overhead cranes, ship unloaders (DRUM couplings)
Selection & quotation
Data summarised from NARA documentation and subject to change by the manufacturer. Send FEYANA your power, torque, speed, mounting and duty conditions for a model recommendation. Price: on request.
Model selection & quotation: Zalo/Hotline +84 988 641 591 · WhatsApp +84 988 641 591 · Email sales.00@feyana.com
FAQ
Who is NARA Autosys?
NARA Autosys is a Korean power-transmission manufacturer founded in 1977 in Busan, certified to ISO 9001, ISO 14001 and ISO 45001.
What data is needed to select the NARA Torsionally Stiff Couplings?
Power or torque, speed, connection and mounting, application and duty conditions.
What is the price?
Quoted by model and configuration: sales.00@feyana.com or WhatsApp +84 988 641 591.
