Medium voltage converter Innomotics Perfect Harmony SH150
The Innomotics Perfect Harmony SH150 medium voltage converter is specially designed for applications with complex requirements. It offers a wide range of different functions and system versions tailored to easily realize individual product solutions. It has the well-known advantages of Innomotics Perfect Harmony GH150 and its predecessor product Innomotics SM120 CM.
Benefits at a glance
- Extremely motor- and line-friendly
- Active Front End (AFE) for grid applications
- Active Front End (AFE) for regenerating motors
- Robust & reliable
Technical data overview

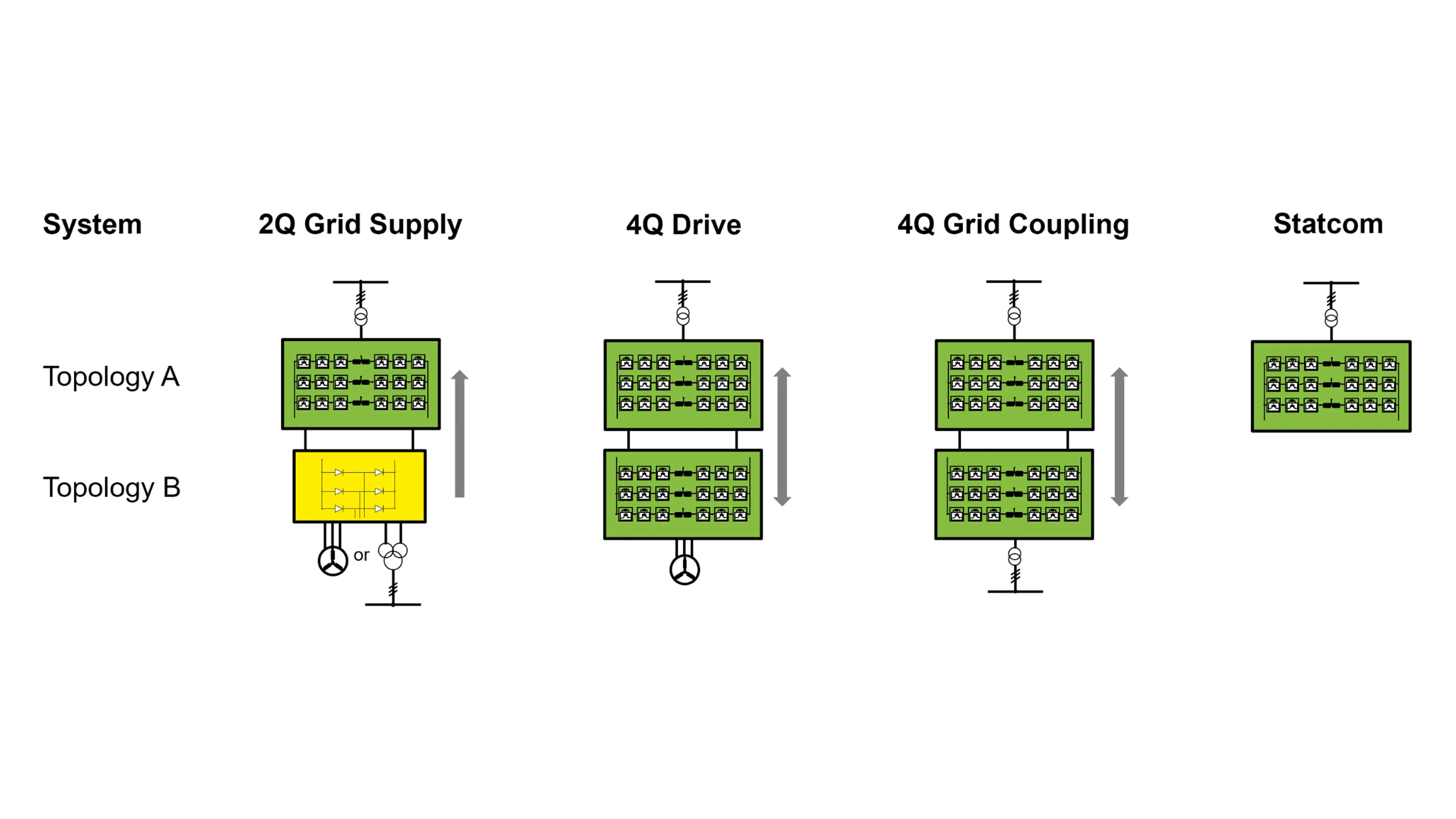

| System | 2Q Grid Supply | 4Q Drive | 4Q Coupling *) | STATCOM *) |
|---|---|---|---|---|
| Industries | Marine, Energy, Industrial Grid | Test Equipment, Offshore Drive | Offshore, Energy, Industrial Grid | Minerals, Industrial Grid |
| Applications | Ship Shaft Generator, Power from Shore, 50/60 Hz Conversion | Regenerating. Test Stand, Transf.-less Drive, Drive + VAR compensation | Bidirectional Coupling, 50/60 Hz Conversion with VAR compensation | VAR compensator |
| Voltage | 3.3 – 11 kV | 3.3 – 11 kV | 3.3 – 11 kV | 3.0 – 10 kV |
| Type rating | 4 – 32 MVA | 4 – 32 MVA | 4 – 32 MVA | 3 – 32 MVAr |
| Topology A Control **) | M2C Active Front End U/f droop control | M2C Active Front End AFE control | M2C Active Front End U/f droop control | M2C Active Front End U/f droop control |
| Topology B Control **) | Diode Rectifier 12-, 24-, 36-pulse | M2C Motor Module Vector control | M2C Active Front End AFE control | – – |
| Order Number | 6SL3805-xA… | 6SL3805-5B… | 6SL3805-5C… | 6SL3805-5D… |
*) on request
**) without grid code certification
