Động cơ giảm tốc MAKISHINKO GE

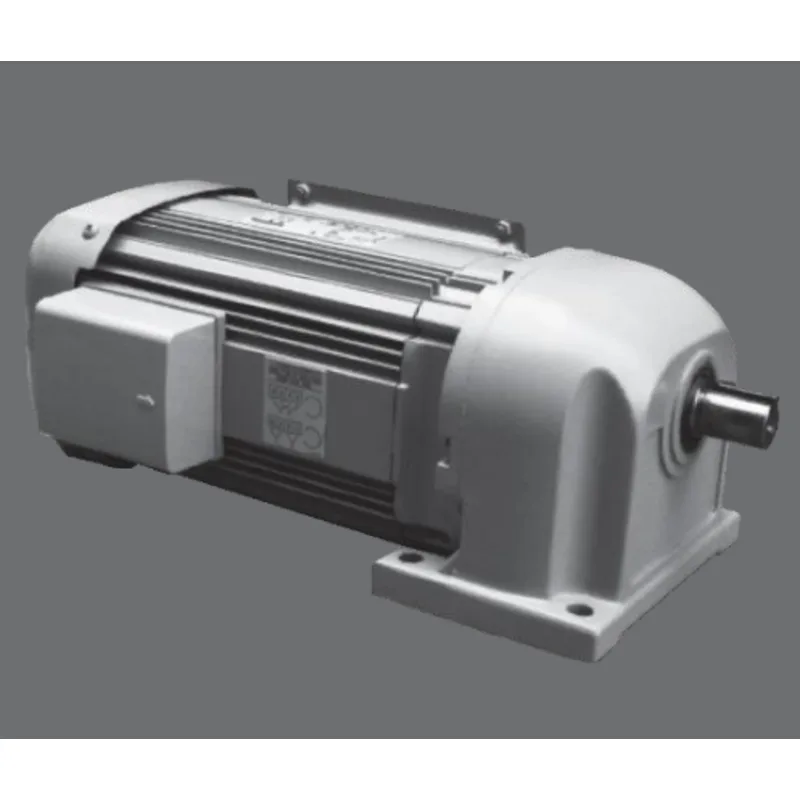

MAKISHINKO GE Series Geared Motor (0.1 – 2.2 kW)

    • Compact and lightweight: small motor dedicated to geared-motor use
    • Quiet: two-piece case improves machining/assembly accuracy and reduces gear noise; vibration-damping steel fan cover
    • Flexible mounting direction
    • Authorized MAKISHINKO distributor in Vietnam – price on request
    WhatsApp quoteEmail quote
    Category:

    MAKISHINKO GE Series geared motor, plate-mounted, available with or without brake, single- or three-phase motors from 0.1 to 2.2 kW and 15 ratios from 3 to 200.

    FEYANA is the authorized distributor of MAKISHINKO in Vietnam, supplying MAKISHINKO worm reducers, geared motors, screw jacks and automated storage systems with model selection support.

    Key features

    • Compact and lightweight: small motor dedicated to geared-motor use
    • Quiet: two-piece case improves machining/assembly accuracy and reduces gear noise; vibration-damping steel fan cover
    • Flexible mounting direction
    • High-performance grease filled at the factory
    • DC spring brake: built-in power supply, low noise, long life, non-asbestos lining

    Main specifications

    ItemSpecification
    Motor output0.1 / 0.2 / 0.4 / 0.75 / 1.5 / 2.2 kW (1-phase: 0.1 – 0.4 kW; 3-phase: 0.1 – 2.2 kW)
    Voltage1-phase 100 V 50/60 Hz; 3-phase 200/200/220 V 50/60/60 Hz
    Poles4P, continuous rating
    Ratios3, 5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100, 120, 160, 200 (1.5 kW up to 100; 2.2 kW up to 50)
    Allowable output torque1.5 N·m to 770 N·m depending on output and ratio
    BrakeDC spring brake, ≥150% of 50 Hz rated torque (0.1 kW: 300%)
    Ambient temperature-15 to 40 °C, no condensation
    Mountingplate type; terminal box on the left viewed from the output shaft
    Special versionsoutdoor type (3-phase 400 V class), inverter-dedicated 0.4 kW

    Model code

    GE T B L – 020 – 160 – H5: GE / S: 1-phase, T: 3-phase / brake / L: plate / output (020 = 0.2 kW) / ratio (160 = 160:1)

    Selection & quotation

    Data summarised from MAKISHINKO catalogs and subject to change by the manufacturer. Send us your load, speed, ratio, mounting and duty conditions and FEYANA will recommend a suitable model. Price: on request.

    Model selection & quotation: Zalo/Hotline +84 988 641 591 · WhatsApp +84 988 641 591 · Email sales.00@feyana.com

    FAQ

    Is FEYANA an authorized MAKISHINKO distributor?

    Yes. FEYANA is the authorized distributor of MAKISHINKO (Japan) in Vietnam.

    What data is needed to select the MAKISHINKO GE Series Geared Motor?

    Load or torque, speeds, ratio or stroke, mounting and duty conditions. FEYANA recommends a model based on MAKISHINKO catalogs.

    What is the price?

    Prices depend on model and configuration and are quoted on request: sales.00@feyana.com or WhatsApp +84 988 641 591.
