BEEFLEX Ceramic Fiber Blanket CFB-RKB

BEEFLEX CFB-RKB ceramic fiber blanket: 950/1050/1200/1350 °C grades, 64–160 kg/m³, 0.61/1.22 m wide, 10–50 mm thick; insulation for kilns, metallurgical furnaces and petrochemical plants.

WhatsApp quote Email quote

Categories: Thermal Insulation Materials, Glass Wool, Rock Wool & Ceramic Fiber, Ceramic Fiber Products Tags: Chemical Industry, Energy & Utilities Industry

Description
Reviews (0)

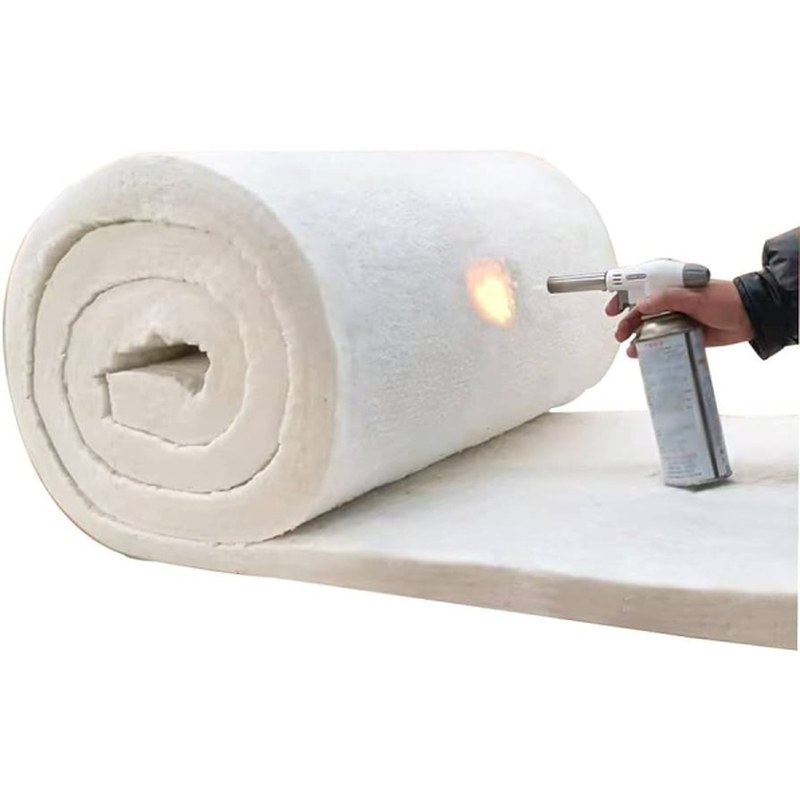

BEEFLEX ceramic fiber blanket (code CFB-RKB) is made from alumino-silicate ceramic fibre and withstands up to 1430 °C. It is designed for kilns, ceramic kilns, steel furnaces, tile kilns, bakery ovens and fire doors.

Selected raw materials are melted at about 1790 °C, spun into uniform fibres, needle-punched into a strong blanket, heat treated and cut to standard widths of 610 mm and 1220 mm.

Technical specifications

Grade	950	1050 STD	1200	1350
Service temperature	950 °C	1050 °C (STD)	1200 °C	1350 °C
Shrinkage after 24 h	≤ 3%	≤ 3%	≤ 3%	≤ 3%
Thermal conductivity (128 kg/m³)	0.15 (600 °C); 0.22 (800 °C)	0.12 (600 °C); 0.20 (800 °C)	0.12 (600 °C); 0.20 (800 °C)	0.16 (600 °C); 0.20 (1000 °C)
Al₂O₃ + SiO₂	≥ 96%	≥ 98%	≥ 99%	–
ZrO₂	–	–	5–7%	15–17%
Fe₂O₃	≤ 1.0%	≤ 0.8%	≤ 0.2%	≤ 0.2%

Product code	CFB-RKB
Density	64–160 kg/m³
Width	0.61 m or 1.22 m
Thickness × roll length	10 mm × 15 m; 12.5 mm × 14.4 m; 20 mm × 7.2 m; 25 mm × 7.2 m; 30 mm × 5 m; 40 mm × 4.5 m; 50 mm × 3.6 m
Custom sizes	Available on request

Key features

Low thermal conductivity
Very high heat resistance
Chemical stability and thermal shock resistance
Sound absorption and high durability

Applications

Ceramic kilns, tunnel kilns, roller hearth and shuttle kilns
Metallurgy: heat treatment furnaces, heaters and insulation covers
Petrochemical: linings for high-temperature reactors
Hot pipe and equipment insulation; fire doors

Request a quote

Prices depend on grade, temperature, density, size and quantity. Send FEYANA the product code, size and quantity for a fast quotation. We supply from Vietnam to Singapore, Malaysia, Thailand, Indonesia, the Philippines and across Southeast Asia.
