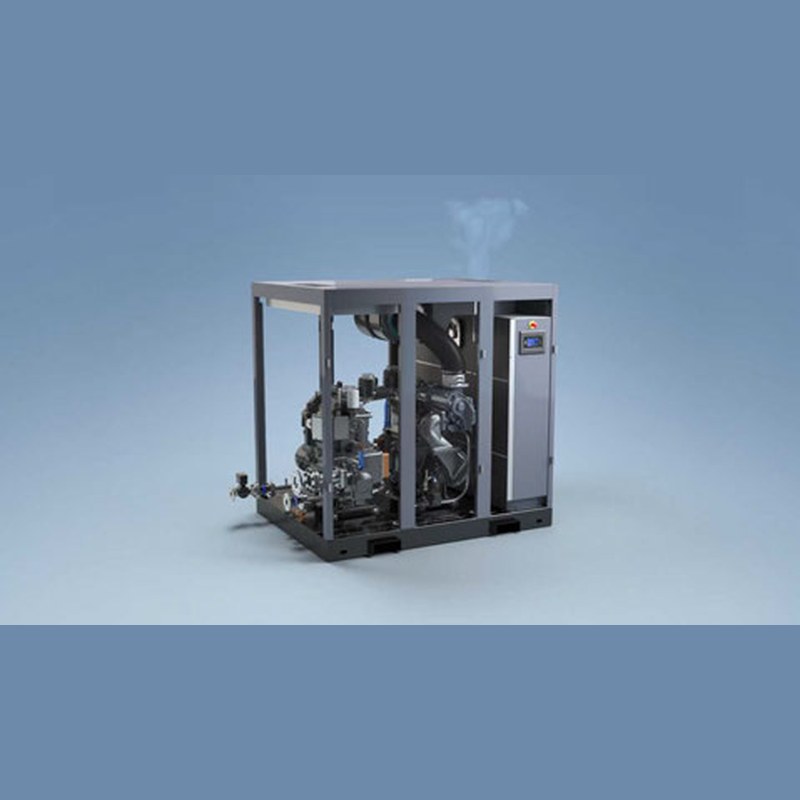

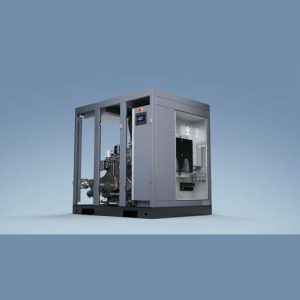

Atlas Copco ZR/ZT 75–160 VSD+ (FF) Oil-free Screw Compressor
Atlas Copco ZR/ZT 75–160 VSD+ (FF) oil-free rotary screw compressors: 75–160 kW, 4–10.4 bar, 78–452 l/s, Class 0 air, dual NEOS drives for up to 35% energy savings.
The ZR/ZT 75–160 VSD+ (FF) is Atlas Copco’s two-stage, variable speed oil-free rotary screw compressor range, delivering ISO 8573-1 Class 0 air with a very wide turndown.
Dual NEOS drives control the low- and high-pressure stages independently for optimum efficiency at every load. Full Feature versions integrate an iMD or iMDG adsorption dryer in the same package.
Key data
| Type | Two-stage oil-free screw, VSD+ |
|---|---|
| Motor power | 75 – 160 kW (100 – 215 hp) |
| Working pressure | 4 – 10.4 bar(e) |
| Free Air Delivery | 78 – 452 l/s (4.7 – 27.1 m³/min) |
| Air quality | ISO 8573-1 Class 0 |
| Cooling | ZR: water; ZT: air |
| Noise level | ZR 66 – 70 dB(A); ZT 63 – 69 dB(A) |
| ZR dimensions (L × W × H) | 2030 × 1660 × 2000 mm |
| Integrated dryer (FF) | iMD / iMDG adsorption |
Model overview
| Model | Motor (kW) | Pressure (bar) | FAD (l/s) |
|---|---|---|---|
| ZR/ZT 75 VSD+ | 75 | 4 – 10.4 | 78.8 – 230 |
| ZR/ZT 90 VSD+ | 90 | 4 – 10.4 | 78.8 – 284 |
| ZR/ZT 110 VSD+ | 110 | 4 – 10.4 | 78.8 – 330 |
| ZR/ZT 132 VSD+ | 132 | 4 – 10.4 | 78.8 – 384 |
| ZR/ZT 145 VSD+ | 145 | 4 – 10.4 | 78.8 – 415 |
| ZR/ZT 160 VSD+ | 160 | 4 – 10.4 | 78.8 – 452 |
ZR FAD at 7 bar effective pressure, ISO 1217 Annex E.
Key features
- Dual NEOS drives, up to 35% energy savings versus fixed speed
- 100% oil-free air, ISO 8573-1 Class 0 certified
- Elektronikon touch controller with remote monitoring
- Complete package: piping, coolers, motor, lubrication and controls
- FF version with iMD/iMDG dryer, no purge air loss
- Energy recovery option from the cooling circuit
Applications
- Food, beverage and dairy
- Pharmaceuticals and healthcare
- Electronics and semiconductors
- Textiles and yarn
- Automotive and paint shops
- Chemicals, oil & gas, power plants
Request a quote
Prices depend on model, pressure, variant (Pack / Full Feature), mains frequency and options. Send FEYANA your required flow (m³/min or l/s), working pressure, air quality class and site conditions for sizing advice and a fast quotation. We supply from Vietnam to Singapore, Malaysia, Thailand, Indonesia, the Philippines and across Southeast Asia.
- WhatsApp / Phone: +84 988 641 591
- Email: sales.00@feyana.com
