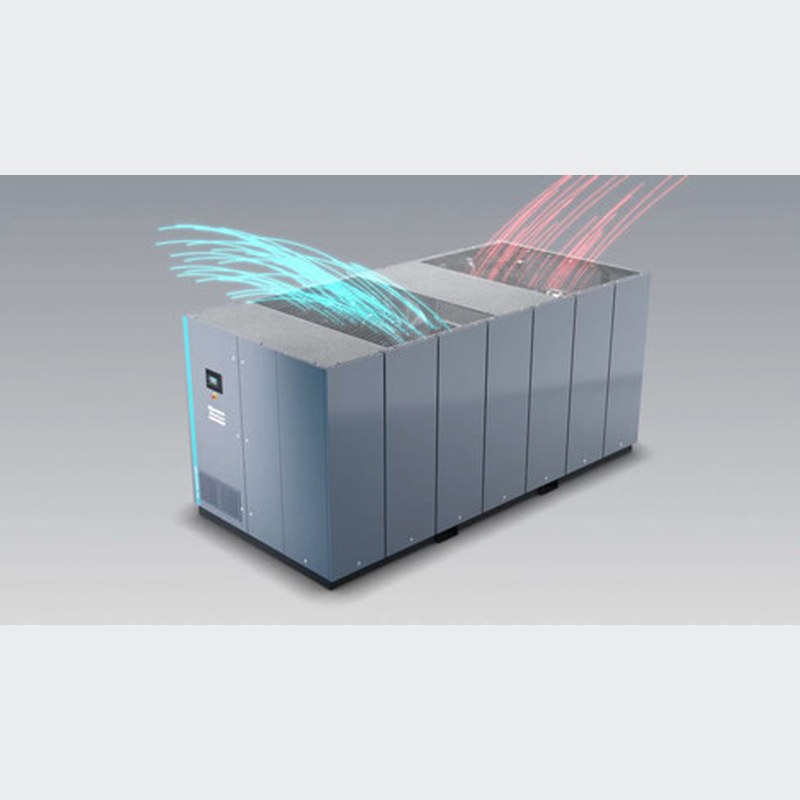

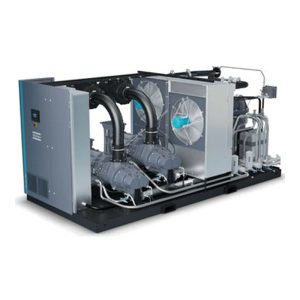

Atlas Copco GA 180–315 (VSD+) Oil-injected Screw Compressor
Atlas Copco GA 180–315 and GA 200–315 VSD+ oil-injected rotary screw compressors: 180–320 kW, 5.5–10 bar, up to 1036 l/s (62 m³/min), IE4 motors, 55°C ambient.
The GA 180–315 (VSD+) is Atlas Copco’s large oil-injected rotary screw range, combining SmartInjection elements with oil-cooled IE4-or-better motors to cut energy, which accounts for up to 80% of a compressor’s life-cycle cost.
The IP66 drive train is fully protected against dust and moisture and runs reliably at ambient temperatures up to 55°C. Full Feature versions integrate a dryer; VSD+ versions match speed to demand.
Key data
| Type | Single-stage oil-injected screw, fixed speed or VSD+ |
|---|---|
| Installed motor power | 180 – 320 kW |
| Working pressure | 5.5 / 7.5 / 8.5 / 10 bar(e) |
| Free Air Delivery | 193 – 1036 l/s (11.5 – 62.2 m³/min) |
| Motor | Oil-cooled, IE4 or better |
| Drive train protection | IP66 |
| Max. ambient | 55°C |
| Noise level | 67 – 77 dB(A) |
| Weight | 5000 – 6800 kg |
Model overview
| Model | Motor (kW) | Pressure (bar) | FAD (l/s) |
|---|---|---|---|
| GA 180 | 180 | 5.5 / 7.5 / 8.5 / 10 | 690 / 585 / 558 / 510 |
| GA 200 | 220 | 5.5 / 7.5 / 8.5 / 10 | 833 / 729 / 686 / 624 |
| GA 250 | 264 | 5.5 / 7.5 / 8.5 / 10 | 985 / 868 / 817 / 754 |
| GA 315 | 320 | 7.5 / 8.5 / 10 | 1036 / 978 / 911 |
| GA 200 VSD+ | 220 | 8.5 / 10 | 195 – 725 / 193 – 665 |
| GA 250 VSD+ | 264 | 8.5 / 10 | 195 – 865 / 193 – 782 |
| GA 315 VSD+ | 320 | 8.5 / 10 | 195 – 1032 / 193 – 955 |
50 Hz data, ISO 1217; power per the manufacturer’s installed motor power. VSD+: min – max FAD.
Key features
- SmartInjection elements and oil-cooled IE4 motors for high efficiency
- IP66 drive train, reliable at 55°C and in dusty sites
- Elektronikon Touch controller with SMARTLINK
- Full-access portal design halves service time
- Multiple small separator cartridges minimise oil carry-over
- FF integrated dryer; energy recovery option
Applications
- Metalworking and fabrication
- Plastics, packaging and printing
- Woodworking and furniture
- Cement, mining and steel
- Central plant air for industrial parks
Request a quote
Prices depend on model, pressure, variant (Pack / Full Feature), mains frequency and options. Send FEYANA your required flow (m³/min or l/s), working pressure, air quality class and site conditions for sizing advice and a fast quotation. We supply from Vietnam to Singapore, Malaysia, Thailand, Indonesia, the Philippines and across Southeast Asia.
- WhatsApp / Phone: +84 988 641 591
- Email: sales.00@feyana.com
