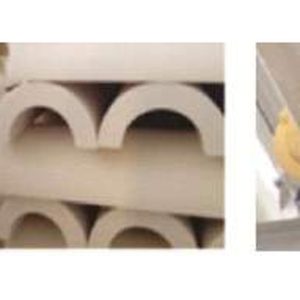

ATATA PIR Foam Pipe Support & Insulation (Cryogenic)
ATATA PIR foam pipe supports and sections for cryogenic lines from -196 °C to 150 °C (LNG, liquid nitrogen, ethylene); k 0.024 W/m.K, fire class B2 DIN 4102.
ATATA PIR (polyisocyanurate) foam is a cryogenic insulation used widely in oil, gas and petrochemical plants, outperforming standard PU in physical and fire properties.
It suits pipes and equipment from -196 °C to 150 °C: liquid nitrogen (-196 °C), LNG (-162 °C) and liquid ethylene (-104 °C), as well as external walls, cold stores, tanks and large pipes. It can be precast in the workshop or cast on site.
Technical specifications
| Fire | Class B2 (DIN 4102, Euroclass BS2D0) |
|---|---|
| Moulded density | 50 kg/m³ |
| Closed cell content | > 92% (ASTM D1622) |
| Initial thermal conductivity | 0.024 W/m.K (23 °C) |
| Compressive strength | 170 kPa |
| Dimensional stability 24 h at -25 °C and 70 °C | Max 1% |
| Service temperature | -196 °C to +150 °C |
Advantages
- Thermoset with high fire retardance
- Low thermal conductivity, excellent cold insulation
- Fluorine free, corrosion and mould resistant
- High mechanical strength and dimensional stability
Applications
- LNG, liquid nitrogen and ethylene lines
- Oil, gas and petrochemical plants
- Cold stores, tanks and large pipes
Request a quote
Prices depend on size and quantity. Send FEYANA the product code, size and quantity for a fast quotation. We supply from Vietnam to Singapore, Malaysia, Thailand, Indonesia, the Philippines and across Southeast Asia.
- WhatsApp / Phone: +84 988 641 591
- Email: sales.00@feyana.com
