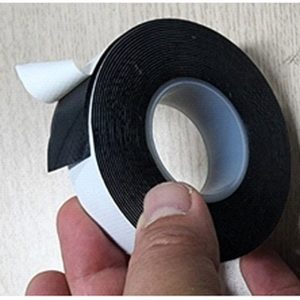

3Wtape J20 10kV Self-Amalgamating Rubber Tape
3Wtape J20 self-amalgamating rubber tape for insulating and waterproofing 6–10 kV cable joints; 0.8 mm, elongation over 300%, tensile 1.53 MPa, 105 °C emergency overload.
3Wtape J20 (3Wtape-HighVoltage10KV-J20) is a self-amalgamating insulating mastic tape for overhead and direct-buried electrical connections.
It stretches and conforms, and is waterproof, corrosion and chemical resistant. On cable ends it seals out water at continuous operating temperatures up to 90 °C and insulates cable connections up to 10 kV when jacketed with vinyl tape.
Technical specifications
| Product code | 3Wtape-HighVoltage10KV-J20 |
|---|---|
| Thickness | 0.8 mm (ASTM D4325) |
| Overload temperature | 90 °C |
| Emergency overload temperature | 105 °C |
| Tensile strength | 1.53 MPa |
| Elongation | > 300% |
| Water absorption | 0.1% (ASTM D570) |
| Ozone resistance | Pass |
| Volume resistivity | 10¹⁵ Ω.cm |
| Voltage rating | 6–10 kV |
Key features
- Rated for 6–10 kV
- Conductor working temperature below 100 °C
- Matches rubber cable overload ratings: 130 °C emergency, 150 °C short circuit
- Waterproof, corrosion and chemical resistant
Applications
- Insulating underground cable joints and overhead lines in systems below 20 kV
- Waterproofing indoor electrical cabinets and underwater equipment
- Car batteries and sanitary drain lines
- Waterproofing fibre optic and internet cable joints
How to apply
- Remove the release film and stretch to about 300% of original length
- Wrap 3 or 5 layers, half-lapped
- Finish with at least 2 layers of PVC electrical tape
Packaging and storage
- Store in a dry, cool place
Request a quote
Prices depend on size and quantity. Send FEYANA the product code, width and quantity for a fast quotation. We supply from Vietnam to Singapore, Malaysia, Thailand, Indonesia, the Philippines and across Southeast Asia.
- WhatsApp / Phone: +84 988 641 591
- Email: sales.00@feyana.com
